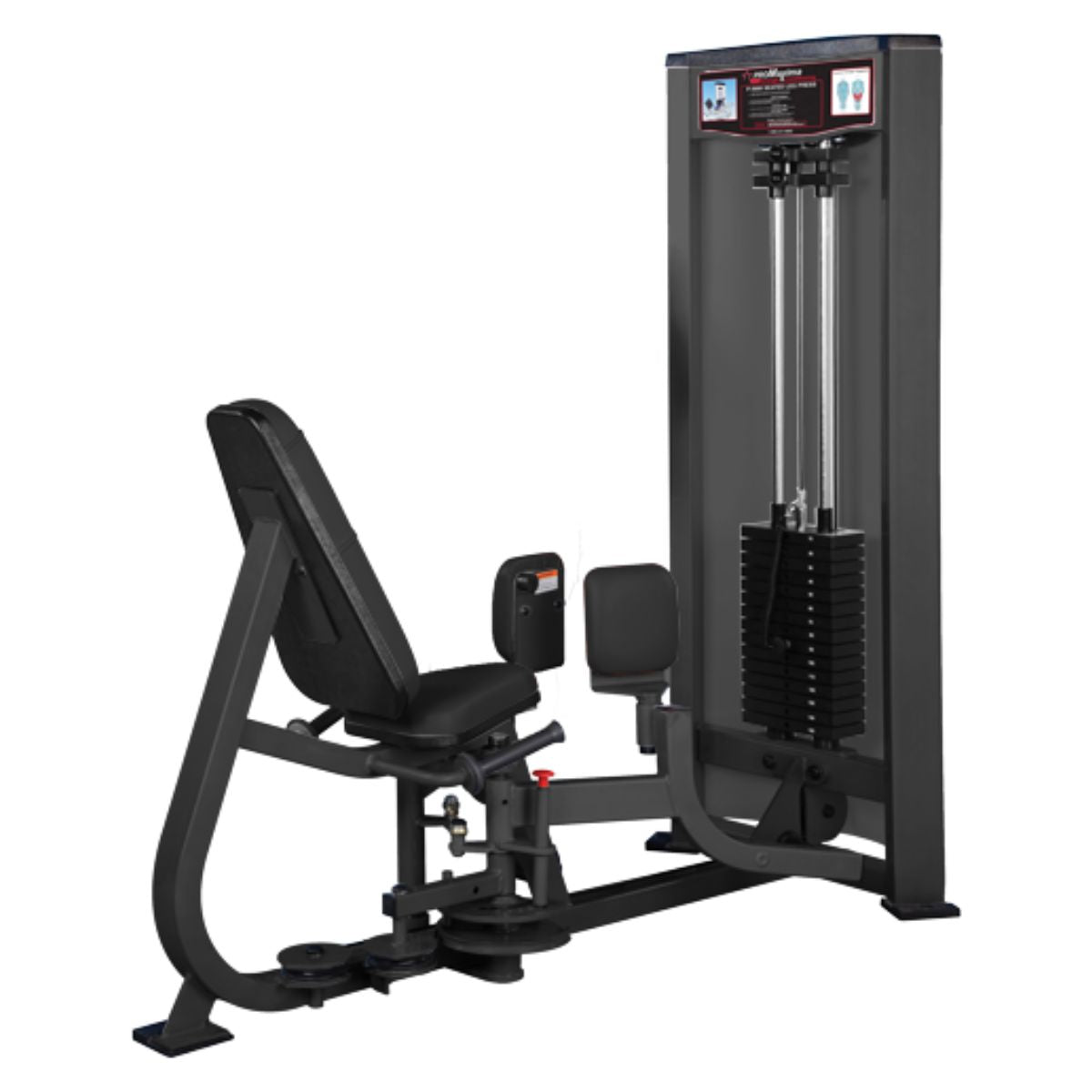

PMX Raptor P-6300 Combo Adduction / Abduction

GENERAL RAPTOR SPECS

• Adjustable positions on all machines to accommodate all users to ensure correct bio-mechanical function.
• Adjustments are made with Heavy Duty spring loaded colored pull-pin knobs.
• Weight Stacks are adjusted with a tethered, magnetic selector pin that extends through the entire weight stack.
• Cable system with 1/4″ thick 4800lb test military spec galvanized oil impregnated air craft cable finished with a tough nylon coating to 3/16″ thick.
• Manual tension adjusters on every machine for the cable adjustments.
• Weight stack plates are solid steel machined precisely to with in an oz of weight.
• Weight stack is accessible from a seated position.
• Weight stacks are enclosed in full length shrouds.
• Weight system allows user to increase by 5lb increments.
• Instructional guide charts used to inform correct usage for each machine along with anatomical highlights to show which muscle groups are being worked.
• Each machine is made with a lower starting weight stack and has counter-balanced arms when needed.
• Heavy-duty 40 oz. commercial grade marine Naugahyde upholstery which is 85% mildew resistant. High density closed cell foam reinforced by thick plywood backing for stable support.
• Exceeds all ASTM requirements.
• Guide rods are 1″ CCRO ANSI 1045, solid steel hard chrome-plated with tensile strength of 75,000psi.
• Frames are constructed of High Stress 3/16″ ASTM A-500 grade B structural steel tubing (11 gauge) 2″x4″, 2″x3″ tubing.
• 2″x3″ tubing on all uprights, 2″x2″x1/8″ ASTM A-500 grade B structural carbon steel tubing (11 gauge) is used on cross members and benches.
• All welds are ground down and stress tested.
• Custom color powder coat paint, 3 stage pre-paint preparatory process that includes a state of the art pellet blasting machine system that purifies steel. The steel is then sent through a preheat stage before the final magnetic paint powder is applied and baked for a long lasting hardened finish.
• Urethane foam grades are a minimal grading of HR-125 (density pcf of 2.60 +/- 0,10 and above in high-compression areas) and HR-150 (density pcf of 4.60 +/- 0.30).
• Cams are computer designed and laser cut to exact shape to allow proper variable resistance throughout the exercise complete range of motion. All cams are 1/4″ thick solid steel.
• The cams are different for each machine to provide correct movement for the exercise.
• Shrouded pulley housing is 6″x1/4″ thick solid steel.
• Pulley wheels are 4″ and 6″ solid fiberglass reinforced body with a 1/2″ cable groove. Oil dipped double sealed racer ball bearings with a 1/2″ axis shaft hole. Sealed for moisture and dust proof.

TECHNICAL SPECS

• 2″ x 4″ 11 guage steel weight stack frame housing.
• Form fitted outer weight stack shield.
• ABS seat & back protective dishes.
• Seamless upholstery.
• Custom made grips and ergonomically formed handles.
• Adjustable range of motion.
• Leg pads swivel for dual use.
• Red axis of rotation indicator.
• Bright red colored pull knobs.
• Instructional color placard.
• 225 lb. weight stack.
• 1/4″ nylon coated aircraft cable driven. 4800 lb. test.
• All pivoting axis have radial bearings.
• True strength curve on cam.

FULL COMMERCIAL

• Lifetime frame, welds, weld allowance, and weight stack warranty
• 5 years friction free bearings, CAMS, guide rods, bushings warranty
• 2 years cables and pulley wheels warranty
• 1 year upholstery, pop pins, weight stack bushings, and selector pins warranty.
• 90 days ABS plastics, polyurethane rollers, neoprene rollers, foam rollers, cosmetic items not specified.
