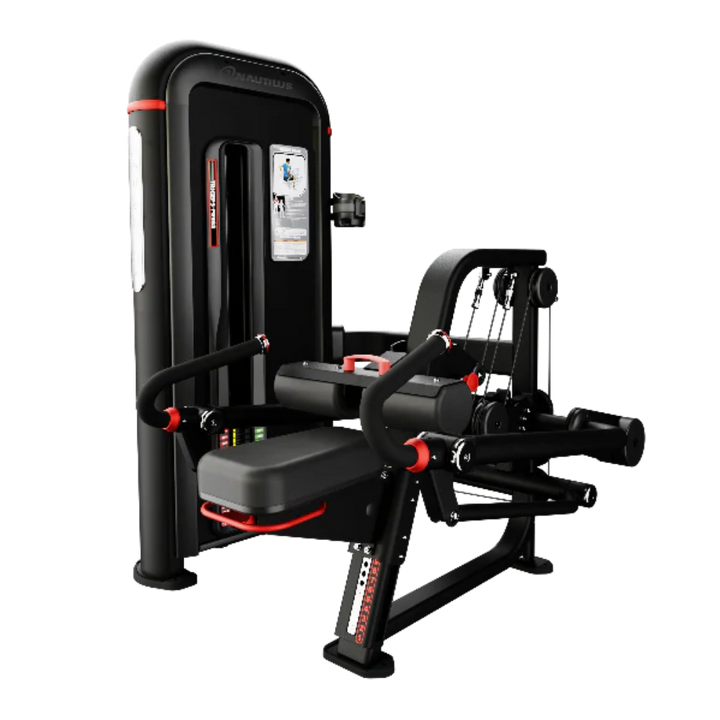

A black and red cable pulley chest exercise machine with a padded seat and backrest, shown on a plain white background.
A black and red cable pulley chest exercise machine with a padded seat and backrest, shown on a plain white background.
Nautilus Instinct Color Options

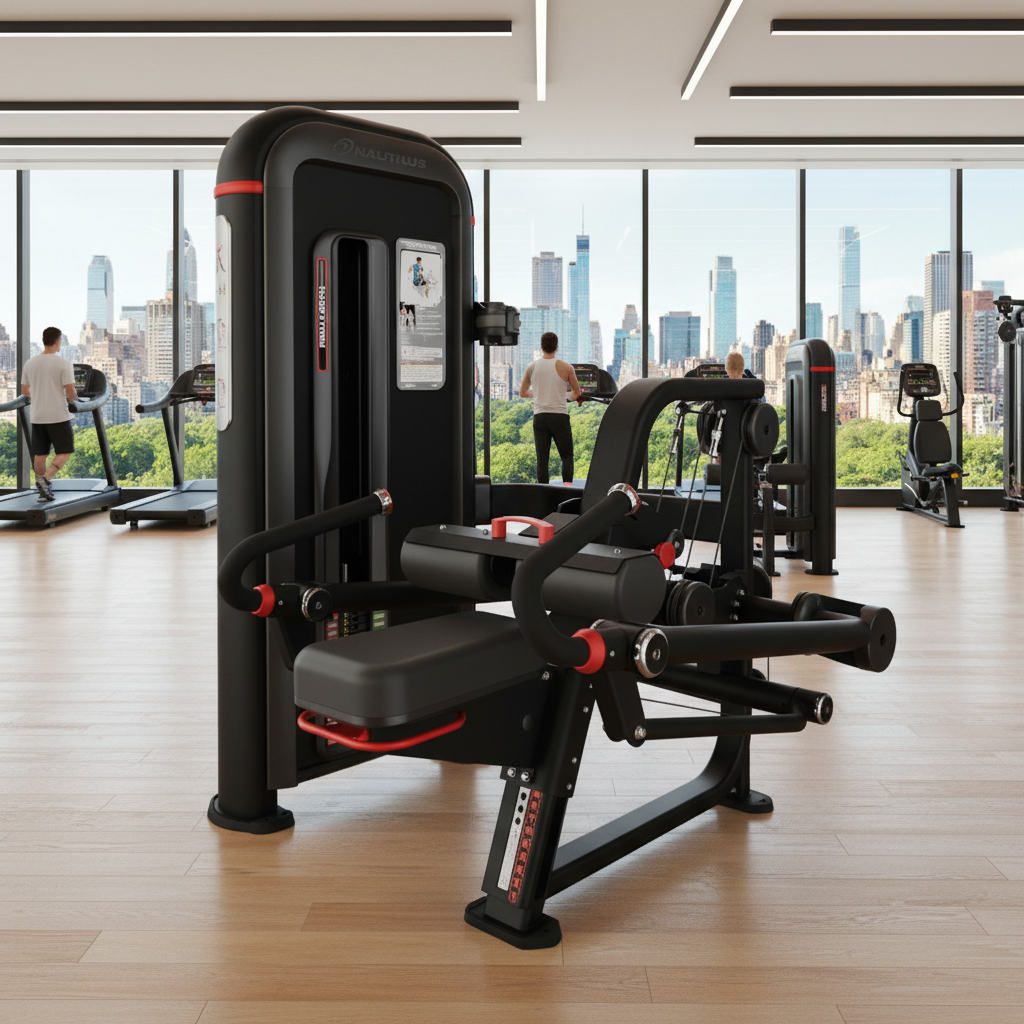

A row of modern cable pulley strength training machines in a dark gym with blue accent walls and ceiling lights.
Nautilus Inspiration Tricep Dip
A black and red cable pulley chest exercise machine with a padded seat and backrest, shown on a plain white background.
A black and red cable pulley chest exercise machine with a padded seat and backrest, shown on a plain white background.
Nautilus Instinct Color Options
A row of modern cable pulley strength training machines in a dark gym with blue accent walls and ceiling lights.
Nautilus Inspiration Tricep Dip
Nautilus

Nautilus Inspiration Tricep Dip

9-IPTD5-60BZS

$8,049.00 $7,319.00
/
Shipping calculated at checkout.

Pay using HSA/FSA with flex Select Flex at checkout to pay for your HSA/FSA eligible items
Liquid error (snippets/image-element line 113): invalid url input
On Display Store Location In Pennsylvania: Currently Not on Display
A black and red cable pulley chest exercise machine with a padded seat and backrest, shown on a plain white background.

TRUSTED BRAND

With the invention of strength training machines, Nautilus brought fitness to the masses. Focusing on biomechanics that complement natural human movements, Nautilus makes weightlifting approachable to people at all fitness levels. The authentic approach to building muscle that started 50 years ago is still true today with essential equipment recognized in strength training programs worldwide.

LOCK N LOAD

Selecting a weight with the intuitive Lock N Load® design is as simple as flicking a switch. Weights are selected via a color-coded switch . Inserting or removing weights is as easy as operating a light switch and guarantees solid operation. There are only a few moving parts in the system and the pin is made of a hardened special steel , so that the Lock N Load guarantees a very long service life.

A row of modern cable pulley strength training machines in a dark gym with blue accent walls and ceiling lights.

BEAUTIFUL, MODERN DESIGN

The Nautilus Inspiration power series makes a very strong first impression. Each device captures the essence of natural movement. Members will appreciate the many easy-to-use and accessible features, such as our patented Lock N Load® weight selection system, easy seat adjustment with wrap-around bar, lenticular patterns, pre-stretch functions and range of motion control.

A STRONGER FIRST IMPRESSION

The Nautilus Inspiration Tricep Dip promotes balanced muscle development through unilateral motion, engaging and defining the triceps. The converging arm support handles allow for wide or narrow grip positions, ensuring the user is in the optimal position. Four-bar linkage provides a joint-friendly movement by allowing the user to maintain a neutral wrist throughout the full range of motion. With the Lock N Load weight selection system, featuring 5lb increments, the Inspiration Tricep Dip is a key piece in the strength circuit.

LOCK N LOAD WEIGHT SELECTION

Now weight selection is as easy as flipping a switch. The intuitive Lock N Load design is easily recognizable. If you’ve ever flicked a light switch on and off, you’ll immediately understand how it works. Universally color-coded switches engage and disengage the weight via an internal pin, providing a safer, more durable and maintenance free operation. Lock N Load prevents unnecessary maintenance and customer service headaches since there are no pins to lose or replace.

KEY FEATURES

  • Promotes balanced muscle development with unilateral motion
  • Converging arm support handles to accommodate both wide or narrow grip positions
  • Alleviates Joint-Stress with Four bar linkage pressing arm that ensures neutral wrist through motion
  • Supported comfort with adjustable thigh stabilization pad
  • Pin less Lock N Load weight selection system for effortless adjustments including incremental add-on weight system (5lb. increase)
  • User-friendly moving image lenticular instruction placard for visual guidance

SPECIFICATIONS

  • Width: 52in (137 cm)
  • Length: 51in (187 cm)
  • Height: 64 in (163 cm)
  • Overall Weight: 750 lb (508 kg)
  • User defined range of motion: Fixed path of motion and four-bar linkage pressing arm ensures neutral wrist through the full range of motion
  • Assisted adjustments: Wrap-around gas assist seat adjust and multiple hand placement options. Seat adjustments provide pre-stretch adjustments and gravity assisted, adjustable thigh stabilization pad
  • Unilateral or bilateral movement: Unilateral and Bilateral dependent can be performed (one or two arm movements)
  • Converging or diverging movements: Converging arm support handles to accommodate a wide or narrow grip
  • Color coded pivot points and adjustments: Yes
  • Pulley ratio: 1:1
  • Frame & upholstery color: Black
  • Frame finish: Electrostatic Powder coating
  • Customizable paint, upholstery, and branding options: Yes, with additional fees and extended lead times
  • Cable vs. belt driven transmission: Cable
  • Bolt down locations defined: Yes
  • Integrated leveling system: Yes
  • Hardware type: Hex / Button Head
  • Tubbing style & thickness: Modern blend of square and round tubing. Most are 3 or 2.5mm / 11 ga
  • Static placards: Yes, simple and intuitive placard
  • Multi-language placards options available: Large and graphical, limited text to eliminate translation requirements
  • Safety catch & stops: Yes, end range of motion safety stop
  • Water bottle holders: Yes, integrated to weight stack tower, eye level
  • Phone holder: Yes, adjustable in size and position
  • Grip specifications: Rubber, large grips for pushing, smaller grips for pulling
  • Contoured pads: Yes
  • Total stack weight: 240 lb (181 kg)
  • Incremental weight system: 10 lb increment, 5 lb add on
  • Lock N Load® Technology: Our Patented Lock N Load weight stack system uses intuitive, color-coded switches to safely engage weights with a simple flick—no pins to lose, no maintenance required
  • Weight stack shroud specifications: Uniform size, standard steel / customized aluminum materials

WARRANTY

COMMERCIAL - Facilities that charge dues and/or > 8 hours/day usage

  • Limited 10 year warranty on structural frame not
    including coatings
  • 5 years parts on major mechanical components
    - guide rods, plates, bearings, etc.
  • 1 year on minor mechanical components - plate switches, cables, grips, etc.
  • 6 months on upholstery
  • 1 year labor

LIGHT COMMERCIAL/VERTICAL - Non-dues paying facility and < 8 hours/day usage

  • Limited 10 year warranty on structural frame not
    including coatings
  • 5 years parts on major mechanical components - guide rods, plates, bearings, etc.
  • 3 years on minor mechanical components - plate switches, cables, grips, etc.
  • 6 months on upholstery
  • 3 years labor

CONSUMER - Home setting, equipment used by home occupants only

  • Limited 10 year warranty on structural frame not including coatings
  • 10 years parts on major mechanical components
    - guide rods, plates, bearings, etc.
  • 10 years on minor mechanical components - plate switches, cables, grips, etc.
  • 6 months on upholstery
  • 3 years labor

Extended parts and labor Protection Plans available.
