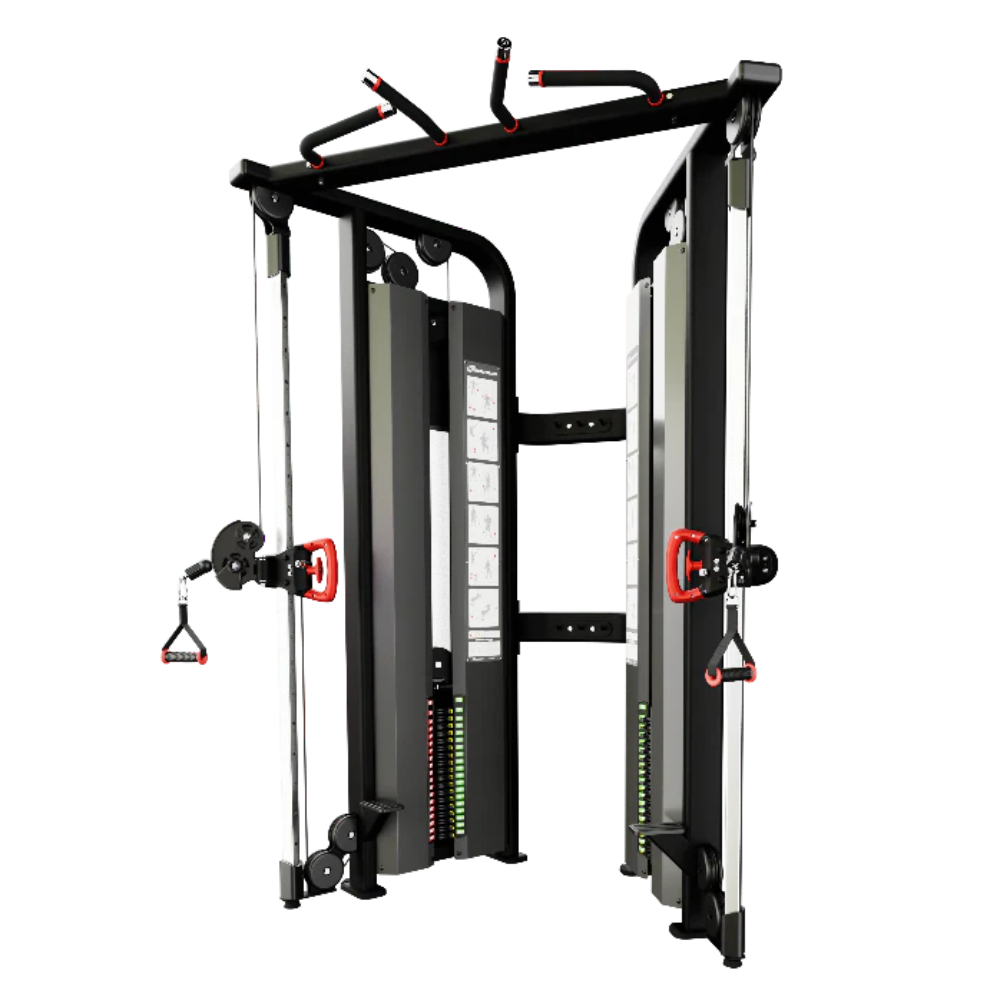

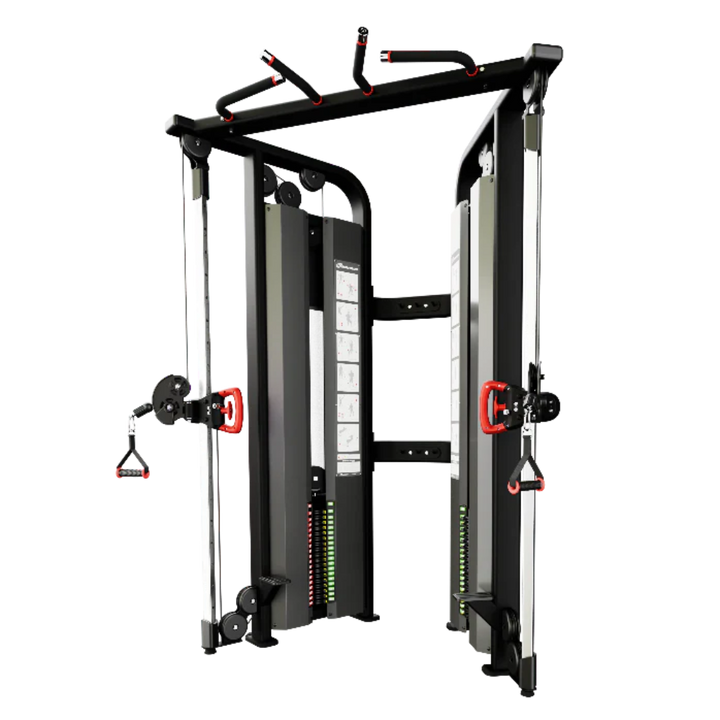

A dual cable pulley gym machine with red handles and red adjustment knobs, featuring a black and silver frame on a solid white background.
A dual cable pulley gym machine with red handles and red adjustment knobs, featuring a black and silver frame on a solid white background.
Nautilus Instinct Color Options
A row of modern cable pulley strength training machines in a dark gym with blue accent walls and ceiling lights.
Nautilus Inspiration Dual Adjustable Pulley
A dual cable pulley gym machine with red handles and red adjustment knobs, featuring a black and silver frame on a solid white background.
A dual cable pulley gym machine with red handles and red adjustment knobs, featuring a black and silver frame on a solid white background.
Nautilus Instinct Color Options
A row of modern cable pulley strength training machines in a dark gym with blue accent walls and ceiling lights.
Nautilus Inspiration Dual Adjustable Pulley
Nautilus

Nautilus Inspiration Dual Adjustable Pulley

9NP-D9302-60AAS

$8,679.00 $7,889.00
/
Shipping calculated at checkout.

Pay using HSA/FSA with flex Select Flex at checkout to pay for your HSA/FSA eligible items
Liquid error (snippets/image-element line 113): invalid url input
On Display Store Location In Pennsylvania: Currently Not on Display
A dual cable pulley gym machine with red handles and red adjustment knobs, featuring a black and silver frame on a solid white background.

TRUSTED BRAND

With the invention of strength training machines, Nautilus brought fitness to the masses. Focusing on biomechanics that complement natural human movements, Nautilus makes weightlifting approachable to people at all fitness levels. The authentic approach to building muscle that started 50 years ago is still true today with essential equipment recognized in strength training programs worldwide.

LOCK N LOAD

Selecting a weight with the intuitive Lock N Load® design is as simple as flicking a switch. Weights are selected via a color-coded switch . Inserting or removing weights is as easy as operating a light switch and guarantees solid operation. There are only a few moving parts in the system and the pin is made of a hardened special steel , so that the Lock N Load guarantees a very long service life.

A row of modern cable pulley strength training machines in a dark gym with blue accent walls and ceiling lights.

BEAUTIFUL, MODERN DESIGN

The Nautilus Inspiration power series makes a very strong first impression. Each device captures the essence of natural movement. Members will appreciate the many easy-to-use and accessible features, such as our patented Lock N Load® weight selection system, easy seat adjustment with wrap-around bar, lenticular patterns, pre-stretch functions and range of motion control.

A STRONGER FIRST IMPRESSION

The Nautilus Inspiration Strength® line delivers a series of must have updates to an outstanding strength circuit. Redesigned with beautiful, modern aesthetics and uniform towers, Nautilus Inspiration makes a powerful first impression. Each machine captures the essence of natural human movement. Members will appreciate the many easy to use and easy to see features like the wrap around assisted seat adjustment, Lenticular image placards, pre-stretch and range of motion controls designed to enhance each user’s experience.

LOCK N LOAD WEIGHT SELECTION

Now weight selection is as easy as flipping a switch. The intuitive Lock N Load design is easily recognizable. If you’ve ever flicked a light switch on and off, you’ll immediately understand how it works. Universally color-coded switches engage and disengage the weight via an internal pin, providing a safer, more durable and maintenance free operation. Lock N Load prevents unnecessary maintenance and customer service headaches since there are no pins to lose or replace.

KEY FEATURES

  • Unlimited high-low cable positioning combinations
  • All steel adjustable pulleys with single hand adjustment design
  • Lock N Load® weight selection system
  • Integrated pull up bar with multi-grip hand positioning
  • 4 to 1 lifting ratio for smooth low inertia operation
  • Extended cable travel for a variety of exercises
  • Fixed footprint for optimal floor planning and placement
  • 5 lb user increments
  • Intuitive exercise placards featuring 12 targeted movements
  • Integrated accessory storage pegs. Comes standard with (2) 6” grip handles, (1) stirrup handle, (1) ankle strap, (1) body strap, (1) long bar

SPECIFICATIONS

  • Width: 62 in (157 cm)
  • Length: 46 in (117 cm
  • Height: 88 in (224 cm)
  • Overall Weight: 1,308 lb (593 kg)
  • User defined range of motion: Unlimited high-low cable positioning combinations with extended cable travel for a variety of exercises. Plus standard, integrated pull up bar with multi-grip hand positioning
  • Assisted adjustments: All steel adjustable pulleys with gravity assisted, single hand adjustment design
  • Unilateral or bilateral movement: Dual, independent weight stacks allows for both unilateral and bilateral movements
  • Converging or diverging movements: Dual, independent weight stacks allows for both converging and diverging movements
  • Color coded pivot points and adjustments: Yes
  • Pulley ratio: 4:1 lifting ratio for smooth low inertia operation
  • Frame & upholstery color: Black
  • Frame finish: Electrostatic Powder coating
  • Customizable paint, upholstery, and branding options: Yes, with additional fees and extended lead times
  • Cable vs. belt driven transmission: Cable
  • Bolt down locations defined: Yes
  • Integrated leveling system: Yes
  • Hardware type: Hex / Button Head
  • Tubbing style & thickness: Modern blend of square and round tubing. Most are 3 or 2.5mm / 11 ga
  • Static placards: Yes, full color static placards on both right/left steel shrouds. Intuitive exercise placards featuring 12 targeted movements
  • Multi-language placards options available: Large and graphical, limited text to eliminate translation requirements
  • Safety catch & stops: Yes, built into adjustment handles
  • Grip specifications: Rubber, large grips for pushing, smaller grips for pulling
  • Total stack weight: 2 x 400 lb (2 x 181 kg) 2 x 100 lb (at handle)
  • Incremental weight system: 5/10/15, 235
  • Weight stack tower height: Dual, independent weight stacks standing inside the frame 91 in (231 cm)
  • Weight storage solution: Integrated accessory storage pegs. Comes standard with (2) 6” grip handles, (1) stirrup handle, (1) ankle strap, (1) body strap, (1) long bar
  • Lock N Load® Technology: Our Patented Lock N Load weight stack system uses intuitive, color-coded switches to safely engage weights with a simple flick—no pins to lose, no maintenance required
  • Weight stack shroud specifications: Transparent, smoked plexiglass inside and outside shrouds

WARRANTY

COMMERCIAL - Facilities that charge dues and/or > 8 hours/day usage

  • Limited 10 year warranty on structural frame not
    including coatings
  • 5 years parts on major mechanical components
    - guide rods, plates, bearings, etc.
  • 1 year on minor mechanical components - plate switches, cables, grips, etc.
  • 6 months on upholstery
  • 1 year labor

LIGHT COMMERCIAL/VERTICAL - Non-dues paying facility and < 8 hours/day usage

  • Limited 10 year warranty on structural frame not
    including coatings
  • 5 years parts on major mechanical components - guide rods, plates, bearings, etc.
  • 3 years on minor mechanical components - plate switches, cables, grips, etc.
  • 6 months on upholstery
  • 3 years labor

CONSUMER - Home setting, equipment used by home occupants only

  • Limited 10 year warranty on structural frame not including coatings
  • 10 years parts on major mechanical components
    - guide rods, plates, bearings, etc.
  • 10 years on minor mechanical components - plate switches, cables, grips, etc.
  • 6 months on upholstery
  • 3 years labor

Extended parts and labor Protection Plans available.
