Nautilus

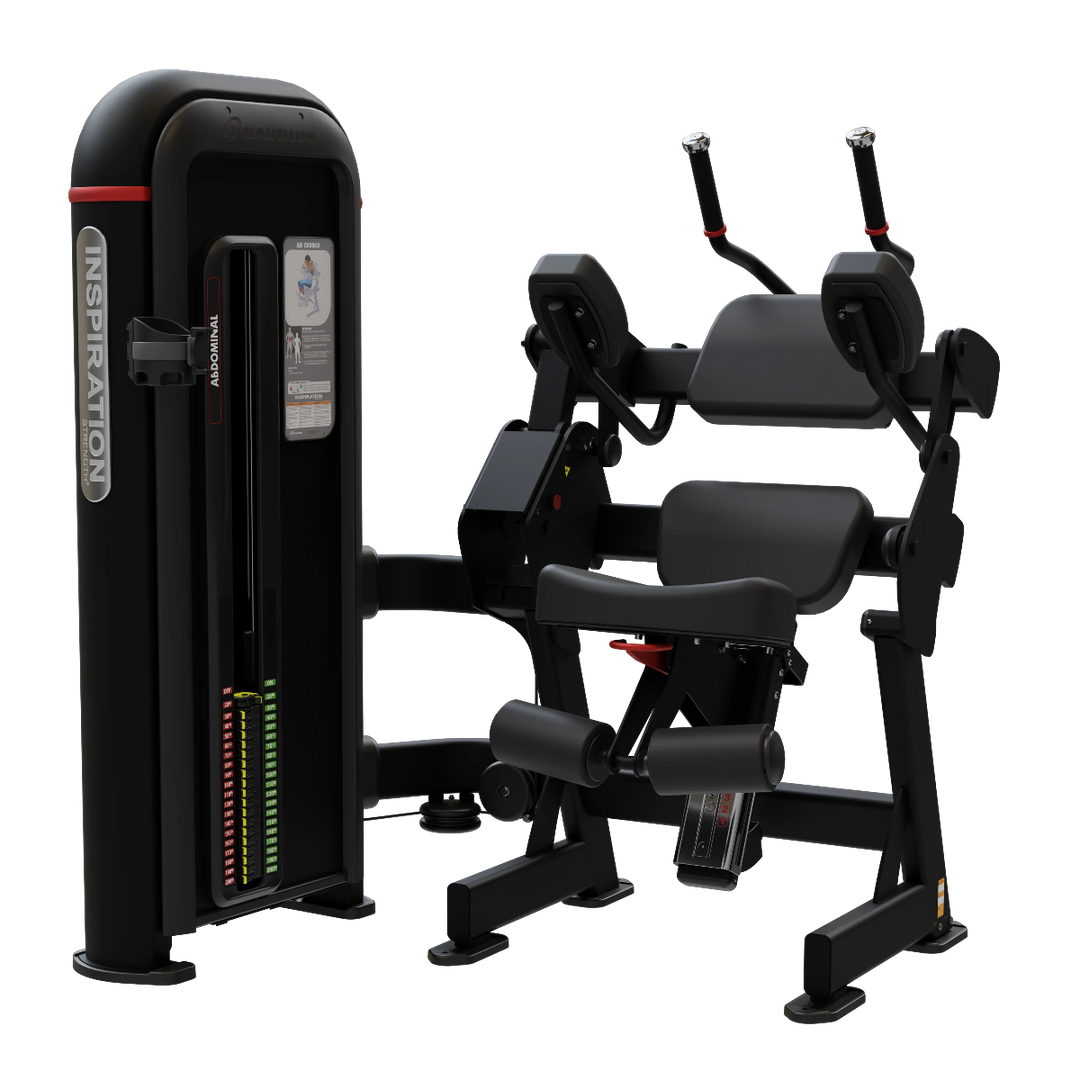

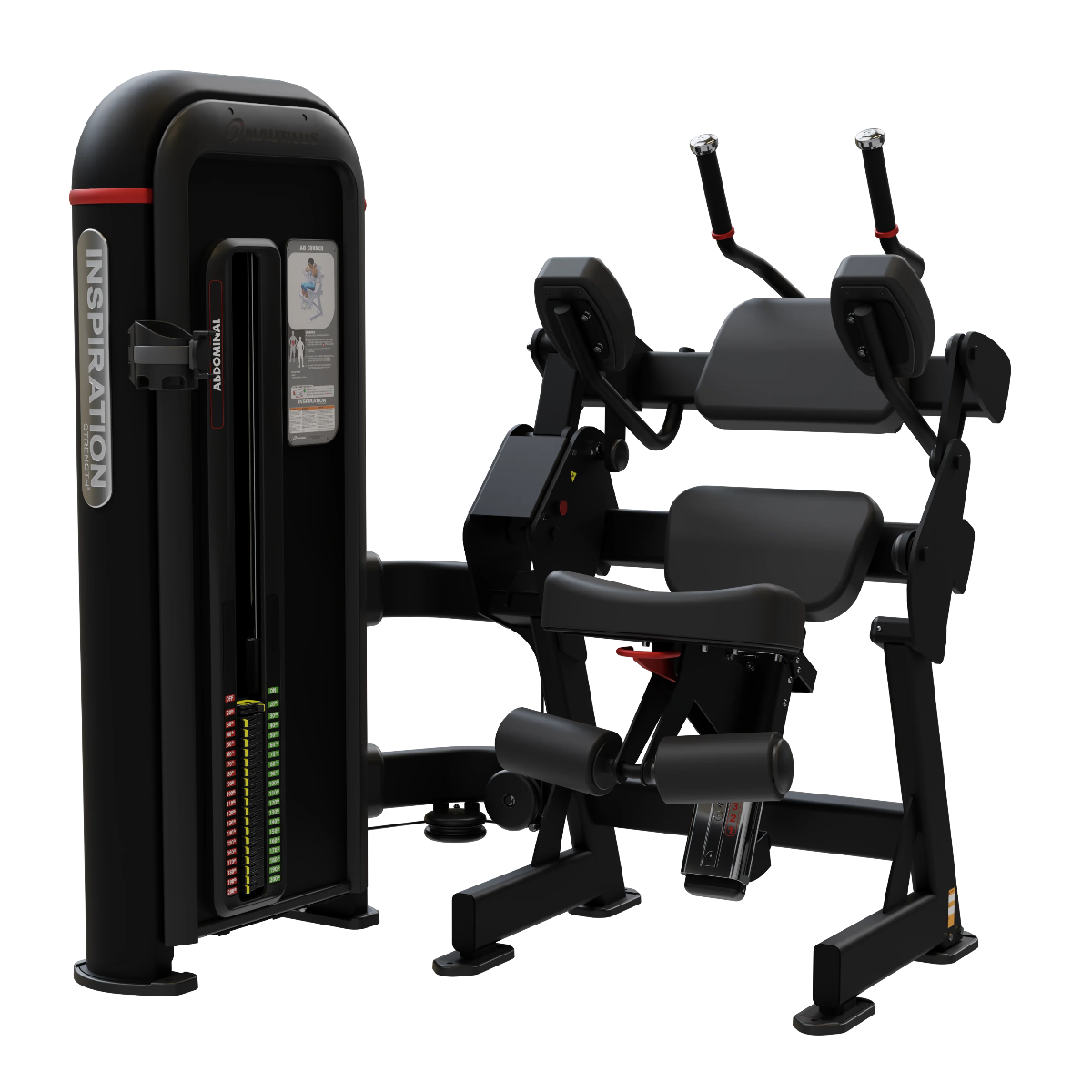

Nautilus Inspiration Abdominal Crunch

9-IPAC5-60BZS

$7,799.00 $7,099.00
/
Shipping calculated at checkout.

Pay using HSA/FSA with flex Select Flex at checkout to pay for your HSA/FSA eligible items
Liquid error (snippets/image-element line 113): invalid url input
On Display Store Location In Pennsylvania: Currently Not on Display
A black cable pulley leg extension machine with adjustable padding, shown on a solid white background.

TRUSTED BRAND

With the invention of strength training machines, Nautilus brought fitness to the masses. Focusing on biomechanics that complement natural human movements, Nautilus makes weightlifting approachable to people at all fitness levels. The authentic approach to building muscle that started 50 years ago is still true today with essential equipment recognized in strength training programs worldwide.

LOCK N LOAD

Selecting a weight with the intuitive Lock N Load® design is as simple as flicking a switch. Weights are selected via a color-coded switch . Inserting or removing weights is as easy as operating a light switch and guarantees solid operation. There are only a few moving parts in the system and the pin is made of a hardened special steel , so that the Lock N Load guarantees a very long service life.

A row of modern cable pulley strength training machines in a dark gym with blue accent walls and ceiling lights.

BEAUTIFUL, MODERN DESIGN

The Nautilus Inspiration power series makes a very strong first impression. Each device captures the essence of natural movement. Members will appreciate the many easy-to-use and accessible features, such as our patented Lock N Load® weight selection system, easy seat adjustment with wrap-around bar, lenticular patterns, pre-stretch functions and range of motion control.

A STRONGER FIRST IMPRESSION

Experience the epitome of abdominal strength training with our Abdominal Crunch machine, designed to reflect the premium quality of the Inspiration Strength Line and pay homage to the classic clamshell movement pioneered by the Nautilus brand over half a century ago. This exceptional fitness equipment is renowned for its ability to engage your entire core, as both your legs and arms work together in perfect alignment to facilitate a complete trunk flexion.

The Abdominal Crunch offers a comprehensive core workout, making it an essential component to enhance your circuit training regimen.

LOCK N LOAD WEIGHT SELECTION

Now weight selection is as easy as flipping a switch. The intuitive Lock N Load design is easily recognizable. If you’ve ever flicked a light switch on and off, you’ll immediately understand how it works. Universally color-coded switches engage and disengage the weight via an internal pin, providing a safer, more durable and maintenance free operation. Lock N Load prevents unnecessary maintenance and customer service headaches since there are no pins to lose or replace.

KEY FEATURES

  • The original Nautilus abdominal crunch (‘clamshell’)
  • Total core activation
  • Features a four-bar linkage
  • Ergonomic wrap-around gas assist seat adjustment
  • Axis of rotation highlighted for precise user positioning
  • Lock N Load weight selection featuring 5lb increments
  • Moving image lenticular placard

SPECIFICATIONS

  • Width: 52 in (132 cm)
  • Length: 51 in (130 cm)
  • Height: 64 in (163 cm)
  • Overall Weight: 684 lb (310 kg)
  • User defined range of motion: Fixed path of motion with the axis of rotation highlighted for precise user positioning. Combination of upper and lower movement arms with the four-bar linkage on upper movement arm provides a moving axis of rotation around the thoracic region of the spine for ultimate user feel and provides true abdominal crunch motion.
  • Assisted adjustments: Gas assist shock, wrap around handles on all seat height adjustments
  • Color coded pivot points and adjustments: Yes
  • Pulley ratio: 1:1
  • Frame & upholstery color: Black
  • Frame finish: Electrostatic Powder coating
  • Customizable paint, upholstery, and branding options: Yes, with additional fees and extended lead times
  • Cable vs. belt driven transmission: Cable
  • Bolt down locations defined: Yes
  • Integrated leveling system: Yes
  • Hardware type: Hex / Button Head
  • Tubbing style & thickness: Modern blend of square and round tubing. Most are 3 or 2.5mm / 11 ga
  • Static placards: Yes, simple and intuitive placard
  • Multi-language placards options available: Large and graphical, limited text to eliminate translation requirements
  • Safety catch & stops: Yes, end range of motion safety stop
  • Water bottle holders: Yes, integrated to weight stack tower, eye level
  • Phone holder: Yes, adjustable in size and position
  • Grip specifications: Rubber, large grips for pushing, smaller grips for pulling
  • Contoured pads: Yes, contoured pads and comfortable support pads
  • Total stack weight: 200 lb (91 kg)
  • Incremental weight system: 10 lb increment, 5 lb add on
  • Lock N Load® Technology: Our Patented Lock N Load weight stack system uses intuitive, color-coded switches to safely engage weights with a simple flick—no pins to lose, no maintenance required
  • Weight stack shroud specifications: Uniform size, standard steel / customized aluminum materials

WARRANTY

COMMERCIAL - Facilities that charge dues and/or > 8 hours/day usage

  • Limited 10 year warranty on structural frame not
    including coatings
  • 5 years parts on major mechanical components
    - guide rods, plates, bearings, etc.
  • 1 year on minor mechanical components - plate switches, cables, grips, etc.
  • 6 months on upholstery
  • 1 year labor

LIGHT COMMERCIAL/VERTICAL - Non-dues paying facility and < 8 hours/day usage

  • Limited 10 year warranty on structural frame not
    including coatings
  • 5 years parts on major mechanical components - guide rods, plates, bearings, etc.
  • 3 years on minor mechanical components - plate switches, cables, grips, etc.
  • 6 months on upholstery
  • 3 years labor

CONSUMER - Home setting, equipment used by home occupants only

  • Limited 10 year warranty on structural frame not including coatings
  • 10 years parts on major mechanical components
    - guide rods, plates, bearings, etc.
  • 10 years on minor mechanical components - plate switches, cables, grips, etc.
  • 6 months on upholstery
  • 3 years labor

Extended parts and labor Protection Plans available.
