Nautilus Impact Pec Fly / Rear Deltoid

Nautilus Impact Pec Fly / Rear Deltoid

9NA-S4304-60AGS

Regular price $6,099.00 Sale price$5,599.00
/
Shipping calculated at checkout.

Liquid error (snippets/image-element line 113): invalid url input

On Display Store Location In Pennsylvania: Currently Not on Display

PEC FLY/REAR DELT

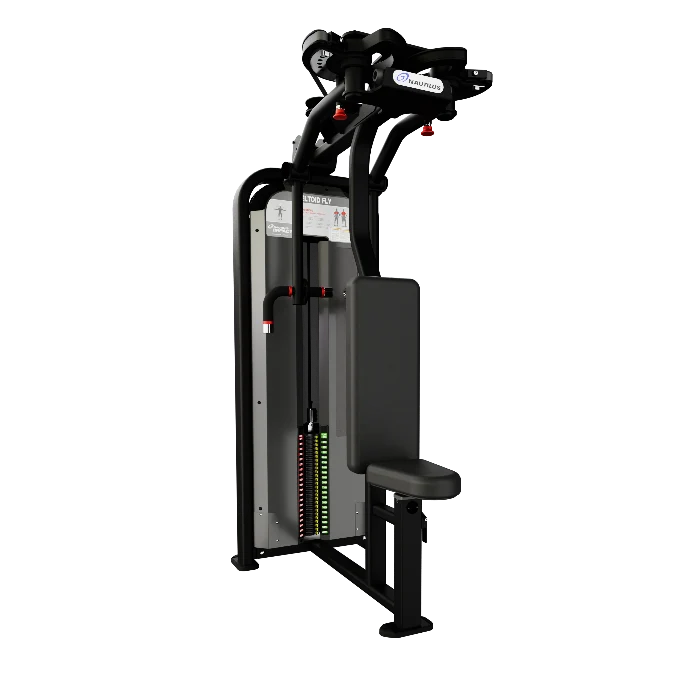

The Nautilus Impact Deltoid Fly / Pec Fly offers dual-function training to target both the rear deltoids and the pecs with biomechanically sound fly movements. This versatility makes it ideal for facilities looking to maximize space while delivering comprehensive chest and shoulder isolation exercises. Its 1:1 weight ratio with dual biomechanically optimized cams and Lock N Load® system ensure consistent resistance and user-friendly performance.

IMPACT STRENGTH LINE

The Impact® Strength line brings many subtle innovations to the power of your next weight training workout. It is the evolution of the proven biomechanics and user features that have made the strength line a solid, competitive product. This line retains all the unique, proven, individual design features that customers have stated are ideal such as pre-stretch, start assist, range of motion selection and graduated & standard heavy weight stacks. Impact Strength incorporates new aesthetics and biomechanics features that have established its position as a competitive and diverse strength product line.

SPECIFICATIONS

FEATURES

  • User-friendly weight stack selection
  • 5 lb incremental weight system for optimal progression
  • Pull-pin adjustment
  • Gravity assisted positioning
  • Featuring the patented Lock N Load® weight selection system
  • Width 30 in (76 cm)
  • Length 50 in (127 cm)
  • Height 79 in (201 cm)
  • Overall Weight 580 lb (263 kg)
  • Shipping weight 646 lb (293 kg)

ADJUSTMENTS AND MOVEMENTS

  • User defined range of motion Fixed path
  • Assisted adjustments Sku Dependent, Gravity assisted positioning, adjustable seat with “easy up” ratcheting adjustment
  • Color coded pivot points and adjustments Yes on all units
  • Unilateral or bilateral movement Unilateral
  • Converging or diverging movements Both
  • Pulley ratio 1:1

FRAME SPECIFICATIONS & CABLE INFORMATION

  • Standard frame color options 60 Black
  • Standard upholstery color options Black
  • Frame finish Electrostatic Powder coating
  • Customizable paint, upholstery, branding options available Yes with additional fees and extended lead times
  • Bolt down locations defined Yes
  • Integrated leveling system No, rubber feet for floor protection
  • Hardware type Hex / Button Head
  • Tubbing thickness 11 ga

USER SPECIFIC INFORMATION

  • Static placards Yes, simple and intuitive placard
  • Multi-language placards options available Yes
  • Range of Motion Stops Yes
  • Grip specifications Rubber, large grips for pushing, smaller grips for pulling.
  • Contoured pads Yes, contoured back pads on select machines

WEIGHT STACK SPECIFICATIONS

  • Total stack weight 220 lb (110 kg)
  • Incremental weight system 5 lb incremental weight system for optimal progression
  • Lock N Load® Technology Our Patented Lock N Load weight stack system uses intuitive, color-coded switches to safely engage weights with a simple flick—no pins to lose, no maintenance required.
  • Add-on resistance available Yes, 5lb incremental
  • Weight stack shroud specifications Inside and outside steel shrouds, clear windows on both sides

WARRANTY

COMMERCIAL - Facilities that charge dues and/or > 8 hours/day usage

  • Limited 10 year warranty on structural frame not
    including coatings
  • 5 years parts on major mechanical components
    - guide rods, plates, bearings, etc.
  • 1 year on minor mechanical components - plate switches, cables, grips, etc.
  • 6 months on upholstery
  • 1 year labor

LIGHT COMMERCIAL/VERTICAL - Non-dues paying facility and < 8 hours/day usage

  • Limited 10 year warranty on structural frame not
    including coatings
  • 5 years parts on major mechanical components - guide rods, plates, bearings, etc.
  • 3 years on minor mechanical components - plate switches, cables, grips, etc.
  • 6 months on upholstery
  • 3 years labor

CONSUMER - Home setting, equipment used by home occupants only

  • Limited 10 year warranty on structural frame not including coatings
  • 10 years parts on major mechanical components
    - guide rods, plates, bearings, etc.
  • 10 years on minor mechanical components - plate switches, cables, grips, etc.
  • 6 months on upholstery
  • 3 years labor

Extended parts and labor Protection Plans available.
